Jura

Jura Water Connection Kit - 24181UL

$875.00

Part number: 24181UL

Try Jura in our Argyle store
  • Automatic water tank refilling
  • Designed for Jura professional machines
  • Integrated fresh-water clip
  • Controlled water connection
Free Shipping on $30 and Over Same-day dispatch before 2pm CST
Authorized Jura Dealer since 2004 Genuine Jura care products, filters, and accessories, backed by Jura USA support.
Secure Checkout Safe, encrypted ordering through Design & Grace.
Price Match & Product Guidance Need help choosing? Contact us.

Jura at Design & Grace

Jura Water Connection Kit - 24181UL

Permanent fresh-water connection kit for the Jura X8, X10, GIGA W3, GIGA X7 and GIGA X8, with automatic water tank refilling

The Jura Water Connection Kit 24181UL connects Jura professional coffee machines to a permanent fresh-water supply, automatically refilling the machine's water tank as needed. Designed for fixed coffee installations serving many drinks a day, the system cuts out interruptions for manual refilling while keeping the machine's original water tank. The kit includes the water connection components and requires initial installation by a qualified specialist.

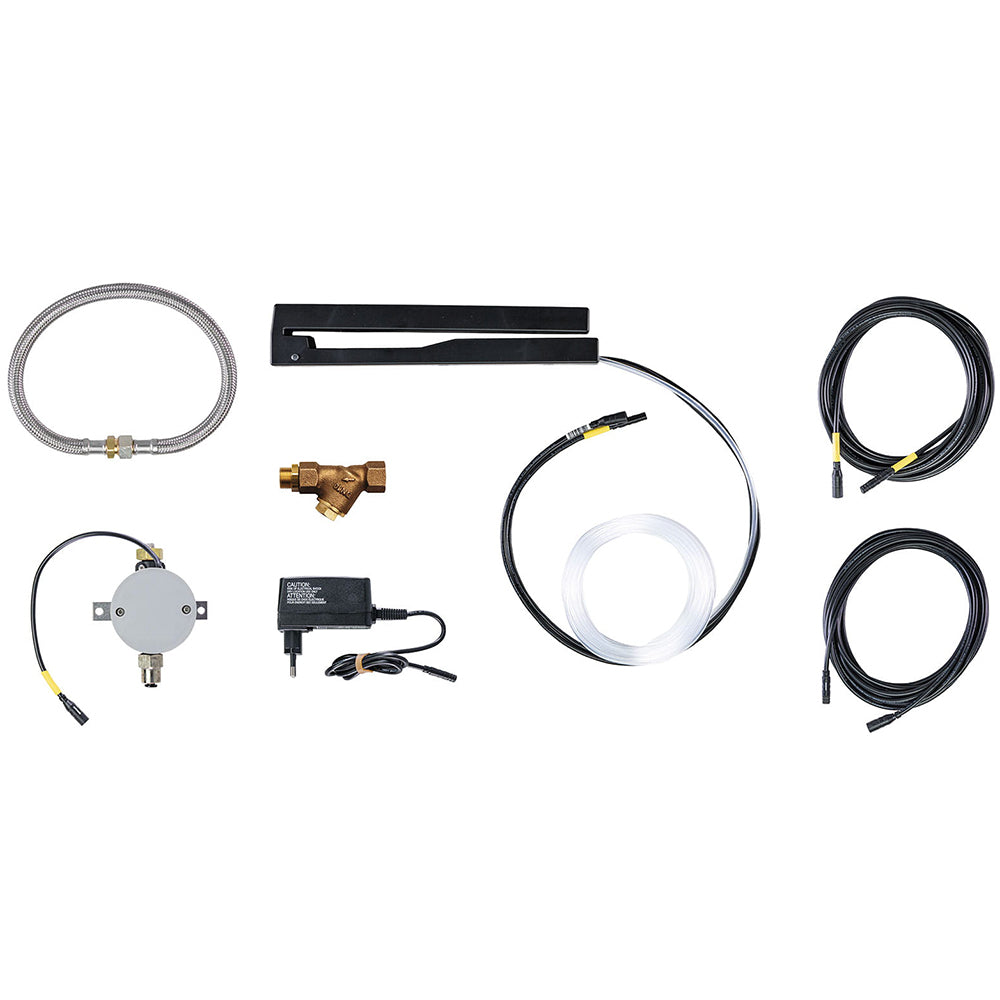

Jura Water Connection Kit 24181UL parts: hoses, valve, strainer, power supply and cables

Water Connection Kit

Automatic Refilling for Busy Coffee Stations

The Water Connection Kit is designed for coffee stations where manual refilling becomes an unnecessary interruption. Once correctly installed, the kit supplies fresh water from the building's water connection to the coffee machine's existing tank whenever it needs refilling.

The system is integrated into the machine rather than adding a separate countertop water reservoir. This keeps the coffee station organized and allows the original water tank to remain part of the machine's normal water system.

Jura's fresh-water clip, valve block, and connection components work together to control refilling. A built-in safety mechanism monitors the filling system, while status indicators show if the clip is incorrectly installed or a filling fault occurs.

Water Connection Kit

Professional Installation, Convenient Daily Operation

The initial fresh-water connection must be established by a qualified specialist. This includes preparing the building's water connection, installing the valve block and pre-filter, and meeting the electrical and plumbing requirements specified by Jura.

After the initial installation, the fresh-water connection can be disconnected and reconnected for routine use and maintenance. The fresh-water clip and water tank remain accessible for daily cleaning.

For businesses and shared coffee installations, this arrangement provides an important operational benefit: fewer interruptions for refilling while preserving the cleaning and maintenance access required for hygienic water handling.

What stands out

Signature Features

Automatic water tank refilling

Refills the existing tank from a permanent fresh-water connection as required.

Designed for Jura professional machines

Fits the X8, X10, GIGA W3, GIGA X7 and GIGA X8 rather than functioning as a universal plumbing adapter.

Integrated fresh-water clip

Fits into the water tank and works with the valve block to control the water supply.

Controlled water connection

The valve block, pre-filter, hoses, and connection cables form the dedicated supply system.

Safety monitoring

A safety float and status indicators provide additional monitoring of the filling system.

Accessible maintenance

The fresh-water clip and original water tank can be removed for the regular cleaning specified by Jura.

Professional initial installation

Designed for a permanent installation with the necessary qualified plumbing and electrical preparation.

Space-efficient integration

The kit connects to the machine without requiring an additional countertop water container.

Product details

Specifications

Brand
Jura
Product
Fresh Water Kit X Line
Article Number
24181UL
Accessory Type
Permanent fresh-water connection kit
Primary Function
Automatic water tank refilling
Compatible Machines
X8, X10, GIGA W3, GIGA X7, GIGA X8
GIGA Models
Water tank needs a cut-out; contact us before ordering
Water Supply
Permanent building water connection
Water Tank
Uses the machine's existing tank
Initial Installation
Qualified specialist required
Safety System
Monitored fresh-water clip with safety float
Connection Components
Valve block, hoses, pre-filter, power supply, and cables
Warranty
1-Year Manufacturer's Warranty

In the box

What's included

  • 1 fresh-water clip
  • 1 valve block
  • 1 water hose
  • 1 metal water supply hose
  • 1 pre-filter
  • 1 power supply unit
  • 2 connecting cables

Compatibility

Fits these machines

  • X10
  • GIGA X8
  • Also fits

    • X8
    • GIGA W3
    • GIGA X7

On the GIGA W3, GIGA X7 and GIGA X8, the water tank needs a cut-out to fit the kit, so please contact us before ordering for those machines.

The kit is for these professional machines; it doesn't fit Jura's home machines.

The installation site needs a suitable permanent fresh-water connection, prepared by a qualified specialist.

From Our Founder

"A permanent water connection is one of the most useful additions to a Jura machine in a busy office. It removes the constant interruption of refilling the tank, while the machine remains accessible for normal cleaning and maintenance."

Tony Boulton, Founder, Design & Grace

Good to know

Shipping, care and support

Shipping & Returns

Fast & Free Shipping on $30 and Over

Orders of $30 or more ship free anywhere in the U.S. Orders placed before 2pm CST ship the same day, and delivery typically takes 1 to 5 business days depending on your location relative to our Texas warehouse.

We accept returns within 30 days of delivery. Items must be unused and in original packaging. Please contact us to begin the return process.

Read our full refund policy

Use & Care
Initial installation

Initial water supply preparation and installation must be performed by a qualified specialist.

The installation must comply with Jura's technical requirements and applicable local plumbing and electrical regulations.

Jura specifies a water supply connection with a shutoff valve, backflow protection, and filtration.

The supplied valve block, pre-filter, and metal hose must be installed correctly.

The electrical connection must meet Jura's requirements, including the specified protective devices.

The fresh-water clip is installed in the existing water tank of the machine.

The water hose and connection cables are installed according to the Jura instructions.

All connections must be checked for secure fitting and leaks before operation.

After the initial filling, Jura instructs the installer to empty and rinse the water tank.

Daily operation

Clean the fresh-water clip and water tank daily.

Before removing the clip, close the water shutoff valve and disconnect the kit's power supply.

Remove the fresh-water clip and rinse it thoroughly under running water.

Empty and rinse the coffee machine's water tank.

Periodic maintenance

Check the pre-filter sieve about every three months and rinse it thoroughly.

Descale the fresh-water clip regularly according to Jura's instructions: Jura specifies three Jura descaling tablets in about 34 fl oz (1,000 ml) of water.

Leave the clip in the solution for about 1 hour, then dip it about 10 times in fresh water to rinse it.

Continue the coffee machine's own cleaning, filter replacement, and descaling as required.

If the fresh-water clip's indicator flashes red, follow Jura's safety-float troubleshooting instructions.

Contact Jura service if the fault cannot be resolved.
Warranty Information
1-Year Manufacturer's Warranty
Safety Information
Have the water supply connection installed by a qualified plumber or installer.
Never leave the fresh-water clip in an empty water tank with the water shut off and the power on: the valve block can overheat.
Manuals & Guides

Add to your order

Pairs well with

Featured

CLEARYL Pro Blue+

Current professional Jura water filter for GIGA X7, GIGA W3, and XJ9

$75.00

CLEARYL Pro Smart+

RFID-enabled professional Jura water filter with capacity up to 79.3 gallons (300 L)

$75.00

Questions answered

Frequently asked questions

What does the Jura Water Connection Kit do?

It automatically refills the water tank of a Jura professional coffee machine from a permanent fresh-water connection, reducing the need for manual refilling.

Which Jura machines are compatible?

The X8, X10, GIGA W3, GIGA X7 and GIGA X8. On the GIGA W3, GIGA X7 and GIGA X8, the water tank needs a cut-out to fit the kit, so please contact us before ordering for those machines.

Will this kit work with every Jura machine?

No. It is designed for these Jura professional machines and doesn't fit Jura's home coffee machines.

Does the kit replace the machine's existing water tank?

No. The fresh-water clip works inside the original water tank, which remains part of the machine's water system.

Does the kit provide a continuous water supply?

It automatically refills the water tank as needed when the permanent water connection is open and the system is correctly installed.

Does this eliminate the need to refill the water tank manually?

During normal connected operation, automatic refilling removes the routine need to add water manually. The tank still needs its daily cleaning.

Do I need a plumber or qualified installer?

Yes. Jura requires qualified personnel to prepare and establish the initial water connection.

Is a water filter included?

The kit includes a pre-filter for the supply connection. This doesn't replace the coffee machine's own water filter or descaling.

Can I install this in an office kitchen?

Yes, provided the coffee machine is compatible and the site has a suitable permanent water supply that meets Jura's requirements.

Does the kit require additional countertop space?

No separate countertop water reservoir is required. The connection components are integrated with the coffee machine and building water supply.

Can I disconnect the water connection after installation?

Yes. Jura designs the system so that it can be disconnected and reconnected after the initial professional installation.

How often does the water tank need cleaning?

Jura says to clean the fresh-water clip and the coffee machine's water tank daily, even with automatic refilling installed.

Does the kit have a safety shutoff?

The fresh-water clip has safety monitoring, including a safety float. If it is triggered, filling stops and the indicator shows a fault that needs attention.

How often should the pre-filter be checked?

Jura recommends checking the pre-filter sieve about every three months and rinsing it thoroughly.

Does the kit change the coffee machine's cleaning or descaling?

No. The machine's normal maintenance continues, and the fresh-water clip has its own cleaning and descaling steps.

Is professional installation included?

No. The product is the water connection kit itself. Site preparation and professional installation are arranged separately.
